How To Fix Cracks in an Earthen Building Structure

Learn how to identify and fix cracks within your earthen structure that are more harmful than beneficial.

| October 2018

  • cracked clay wall
    Some cracks in earthen clay are tiny little breathing spaces which help to cool or heat the space, but sometimes the cracks are too large and can cause structural damage.
    Photo by Getty/Mikos
  • book cover
    “The Mudgirls Manifesto Handbuilt Homes Handcrafted Lives” guides readers through building healthy, eco-friendly homes out of natural and recycled materials, while also giving a group of women the opportunity to explore social inequalities and systems of oppression that are driving forces behind patriarchy, hierarchy, and capitalism.
    Cover courtesy New Society Publishers

  • cracked clay wall
  • book cover

Mudgirls Manifesto Handbuilt Homes Handcrafted Lives (New Society Publishers, 2018) by The Mudgirls Natural Building Collective is a guide to building eco friendly homes from natural and recycled materials to cut down on the mass pollution and waste that comes from conventional construction methods.  The Mudgirls collective is about more than alternative building practices, each woman that spends time as a member of this group is taught building techniques, leadership qualities, and a new way of life where one can live in harmony with the earth and in equality with all of its people. While this book does include many helpful tips on building and techniques for effective and eco-friendly projects the main goal is to focus on the groundbreaking process and practice this group of women embody.

You can purchase this book from the Grit Store: Mudgirls Manifesto.

How to Fix Cracks

There is a crack in everything. That's how the mice get in.

- Leonard Cohen via Mudgirls



Clay is motion. With water it swells, with heat it shrinks. All this moving is wonderful as it regulates moisture, creating comfortable climates - cooling the heat of the summer and holding the warmth of the stove in the winter. Natural plasters in a bathroom or kitchen help regulate precipitation and keep mirrors from fogging up. Clay really is amazing stuff.

Earthen finishes can crack. We can think of the cracks as the beautiful details of the handmade and natural . . . tiny little breathing spaces.

Sometimes, however, the beautiful little fissures are too big to be doing their job; earthen finishes are meant to create a skin that will keep droplets of moisture out, while letting water vapor pass right through.

When your cracks are too big, it is best to understand what caused them. This will depend on what you are working on.

Floors

Floors consist of a large area of moist material that will crack when not dried uniformly, or crack where there's an intentional break in the floor (thresholds between rooms). Floors require a slightly different mix than walls or plasters - making the mix a bit sandier will help prevent cracking, as will applying the layer in a uniform thickness, making use of dehumidifiers and fans to dry floors evenly, and being extra careful when filling in breaks. Compressing and hard troweling the floor when it is almost or just dry is also beneficial.

Even then, some cracks are likely to appear. When fixing cracks in floors:

  1. Rough up the edges of the cracks
  2. Dig out a v-shaped groove
  3. Dampen the groove
  4. Fill it in with a bit more floor mix
  5. Trowel the floor smooth

When cracks are repaired and dried, a thin color wash on the floor will cover any marks made during the repair. Apply the wash before oiling and waxing the floor. When the floor cracks are super small, they can be filled with extra wax and oil. A good melted crayon can do wonders.

Clay Plaster

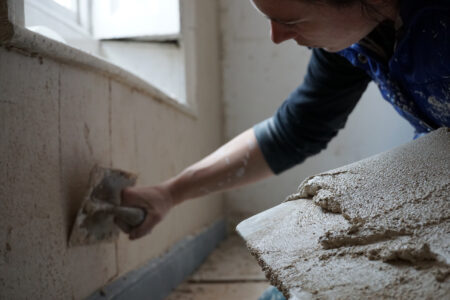

Clay plasters crack when the mix is a bit off, or because new buildings can settle and shift - or where there's a transition between two different surfaces. If plaster hasn't enough fiber or has too much clay, it can crack. Mixing in more sand, powdered milk, or extra sticky binders like wheat paste and cactus juice can prevent this, as will using a mesh fabric, like burlap, over transitions. Clay plasters can be wetted again using a light misting bottle or a sponge, and the plaster can generally be worked and compressed again, fixing cracks. Blend the fix by rehydrating the surrounding area and working it all together gently with a soft plastic trowel. A recycled yogurt container lid with the edges cut off is the best soft plastic trowel in our tool boxes. Be wary of over­working/compressing the area as it can leave darkened, smudgy "burn marks" on your surface that remain obvious.

Lime Plaster

Lime plasters are a slightly more serious business, as lime plaster can crack easily. If the plaster is still fresh, mist and scratch the cracks a bit, like how we open floor cracks with a slight v-shaped groove; a knife or trowel can help here. Using the same lime plaster mix, add a bit of water, and strain the plaster through cheesecloth to remove the bigger sand pieces, put the blob of new wet plaster on something that will absorb the excess water, like cardboard. This creates a lime plaster putty that can then be added to the slightly v'd-out grooves. Now, use your little plastic yogurt lid trowel to compress the area. Once dry, you can then use superfine sandpaper to smooth your fix.

If your lime plaster is already compressed and cured, the cracks can be sanded first, fixed as above, then sanded again.



More from The Mudgirls Manifesto:


Excerpted from Mudgirls Manifesto Handbuilt Homes Handcrafted Lives by the Mudgirls Natural Building Collective and published by New Society Publishers, 2018.
